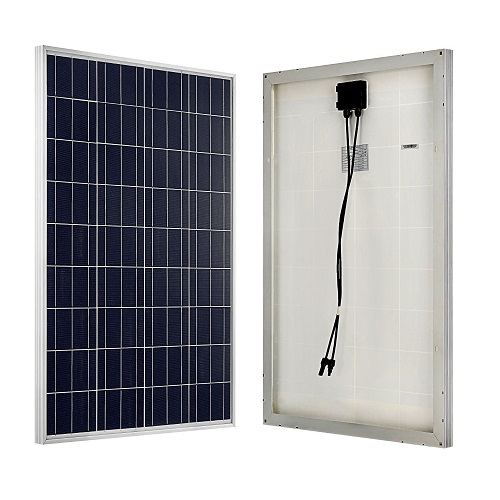

ECO-WORTHY 100W 12V Polycrystalline Solar Panel

Posted By Eco-Worthy Solar Technology Co. Ltd Eco-Worthy Inc on 2019-03-18 9:00 AM
0 star(s) from 0 user(s)

Package Included

1pc 100W 12V Polycrystalline Solar Panel

USA, EU, Australia Stock, Usually Ships in 3 to 5 Business Days

The ECO-WORTHY 's 100W solar panel composed of multi-crystal solar cell with an efficiency of over 17%. All ECO-WORTHY rigid solar panels are constructed using a tempered glass front, EVA pottant and a PVF backing to provide maximum protection from the most severe environmental conditions. The entire laminate is framed in a heavy duty anodized aluminum frame to provide structural strength and ease of installation. This translates to both more wattage per square foot and lower mounting structure cost.

Features

1. Ideal Daily Output: 500W (depending on the availability of sunlight)
Basic component for off-grid solar panel system, caravan, RV, boat, Greenhouse solar panel system
2. Easy Installation with pre-drilled hole. each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connectors
3. By-Pass Diode minimized the impact of shade
4. Waterproof IP-65 Rated Junction Box: advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets).
5. Resistance to Salt Corrosion and Humidity
6. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa),
7. Lightweight anodized aluminum frame and reinforced Safety and anti-reflection coated glass 3.2mm thick (tempered + patterned)

ECO-WORTHY 100W 12V Polycrystalline Solar Panel

Specification
Rated power 100W
Voc 22.41V
Vop 17.9V
Short circuit current (Isc) 6.2A
Working current (Iop) 5.59A
Output Tolerance ±3%
Temperate coefficient of Isc (010+/- 0.01 )%/ ℃
Temperate coefficient of Voc - (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc -0.47%/℃
Temperature range -40℃ to +80℃
Frame Heavy duty aluminum
Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage 12V
Dimensions (L x W x H)mm 1000x665x35mm
Weight 19.85lbs(9Kg)
Warranty 5-year/95% efficiency rate
10-year/90% efficiency rate; 25-year/80% efficiency rate
5-year material and workmanship warranty
25-year transferable power output warranty



Applications

ECO-WORTHY rigid 100W poly solar panel is widely used on solar system, caravan, RV, boat, greenhouse, solar pump watering system.

Tags: solar energy, solar panel, solar panels

Price: INR 92.00

more
1 Day(s) refund policy.
